Beta Marine BETA 10


Beta 10

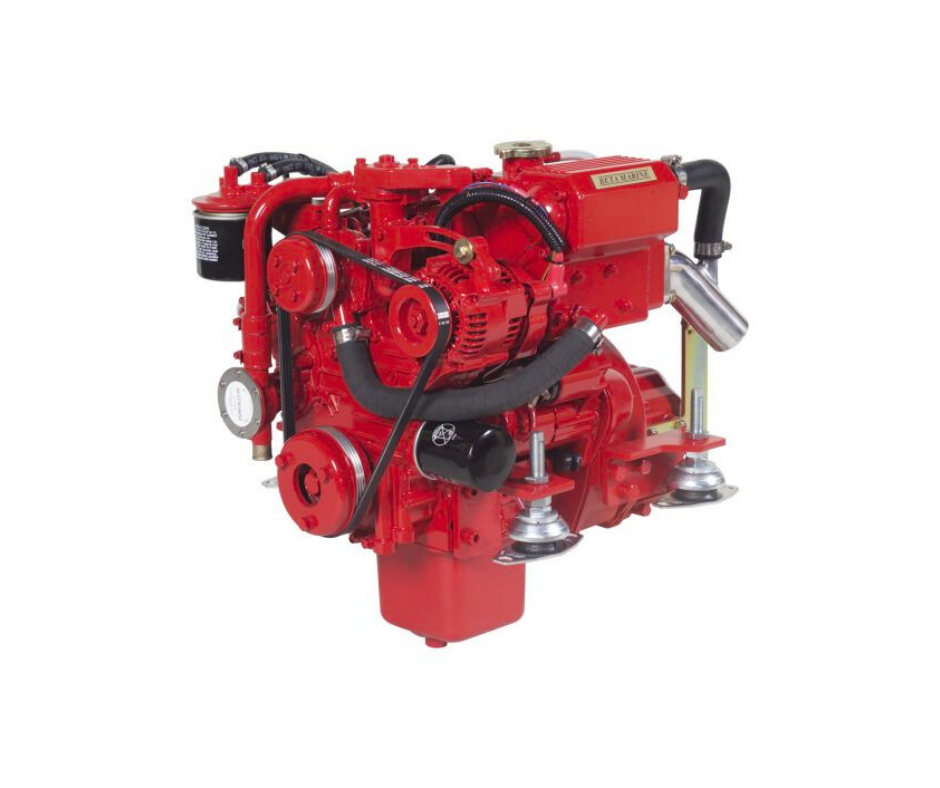

Beta Marine – Beta 10 – 2 cylinder, naturally aspirated, diesel propulsion
engine developing 10 bhp at 3,000 rpm with a swept volume of 479 cc
(Recreational Craft Directive emission compliant). The engine is supplied
complete with a heat exchanger and header tank, water cooled exhaust
manifold, fresh and sea water pumps, cast injection bend, mechanical fuel lift
pump, fuel and oil filters, flywheel with heavy inertia ring for super smooth
running at low rpm, flywheel housing, special quiet air intake filter, 12 volt
starter, 40 amp battery charging alternator, shutdown solenoid, control panel
“A” (Keystart switch, push button stop, green light for ‘power on’, red warning
lights and audible alarm for: low oil pressure, high water temperature,
alternator ‘no charge’); a 3m interconnection cable with multi pin plug and
socket to engine harness. Gearbox with nominal 2:1 reduction, heavy duty
engine feet with flexible mountings, “Morse” type end fittings for speed and
gear control, engine test certificate, operators manual. Red paint and packed
on skid base

Standard Features
Reliable heat exchanger cooled, naturally aspirated, indirect injection
diesel engine, based upon Kubota’s highly advanced technology.
Cast iron cylinder head and block with a gear driven camshaft and sea
water pump.
Three vortex combustion system for quiet running, excellent fuel
consumption, and emission compliance in all countries.
Installation angles up to 15° maximum when static, and 25° when heeling.
Technodrive or PRM gearboxes. Output rotation is clockwise in ahead
viewed from gearbox end.

Optional Extras
Special engine feet to suit your installation requirements.
Shallow sump.
12 Volt – 70 Amp alternator available.
Keel cooling.
Control Panels ABV, ABVW, B or C with gauges and alarms.
List of comprehensive range of accessories to cover a complete engine installation.
