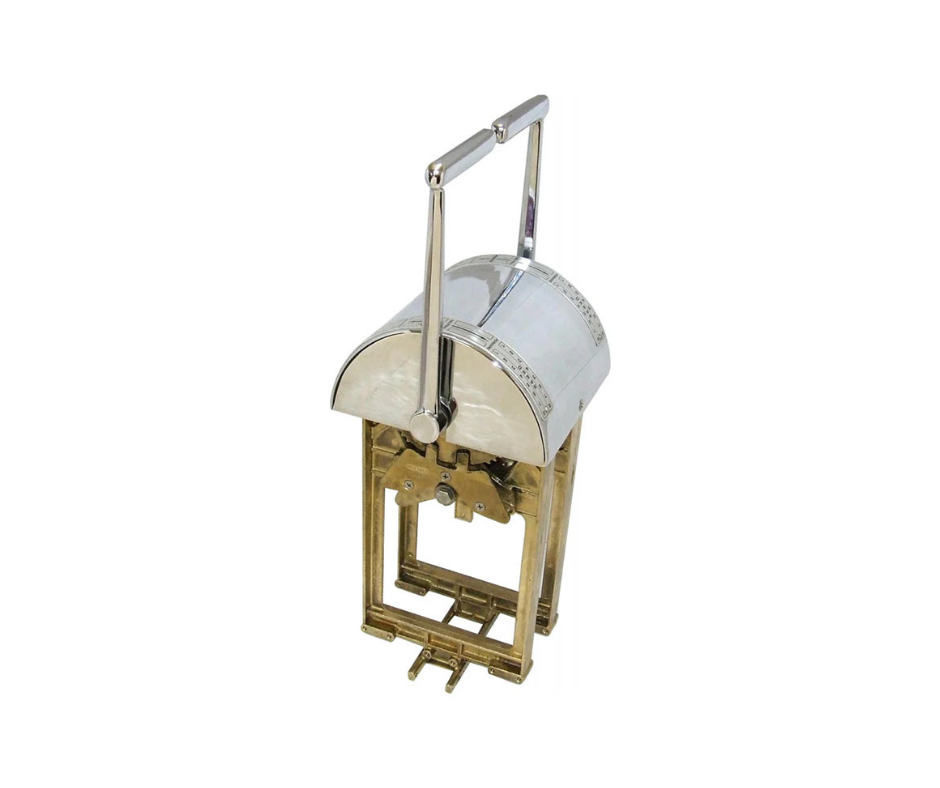

D 2092-KYZ Fyrir stjórnbarka

Kobelt Model 2092

TWO STATION

TWO LEVER CONTROL

The 2092 master control head features a

pull-out handle for overriding throttle. All

control models are entirely made of diecast

silicon bronze and stainless steel

hardware and are backed up with our two

year warranty.

The maximum clutch stroke of this unit is

2-3/4” (70 mm) and the maximum throttle

stroke is 2-5/8” (67 mm). Various

connection points are available to provide

the position for correct travel for your

engine and gear.

The remote control head to pair with this

model is our Model 2094.

with chrome finish (K), T-bar handle (Y)

and riveted label (Z).



NOTE:



Two cables per engine are required for

interconnecting the master and remote

station. These are 47 series pull/pull

cables and are available in even foot

lengths from 8 to 30 feet. Control heads

include all necessary parts to attach

cables from the master station to the

remote station

Adapter kits to connect clutch and throttle

cables to the master control are ordered

as follows:

2092-0901 for 30 series cables

2092-0902 for 40 series cables.
